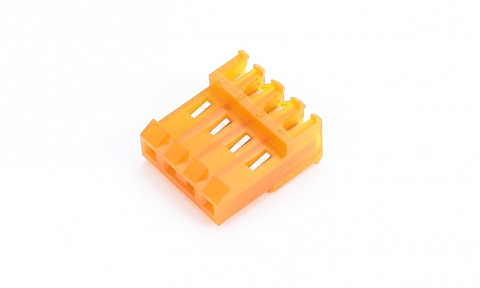

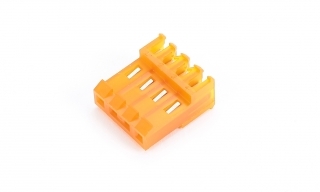

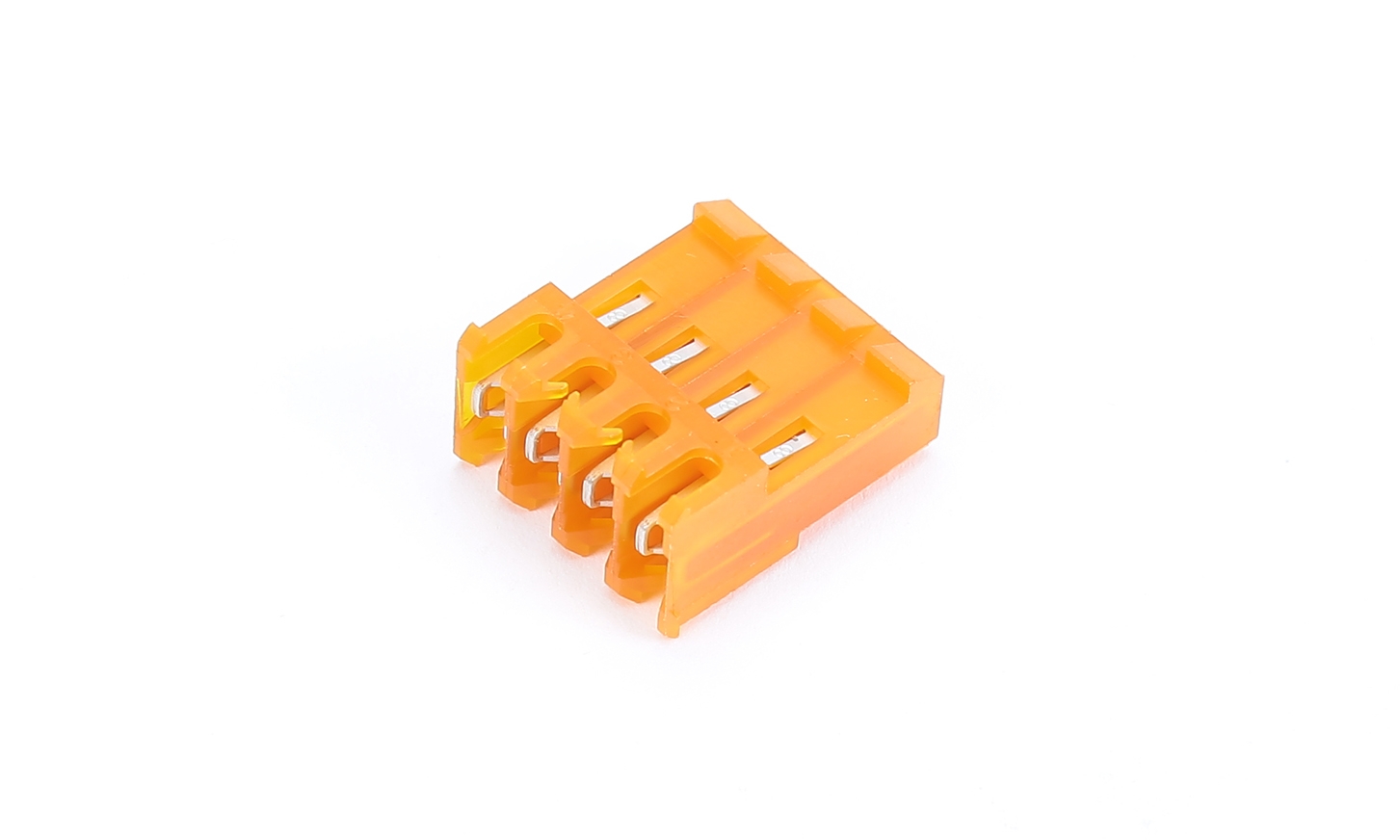

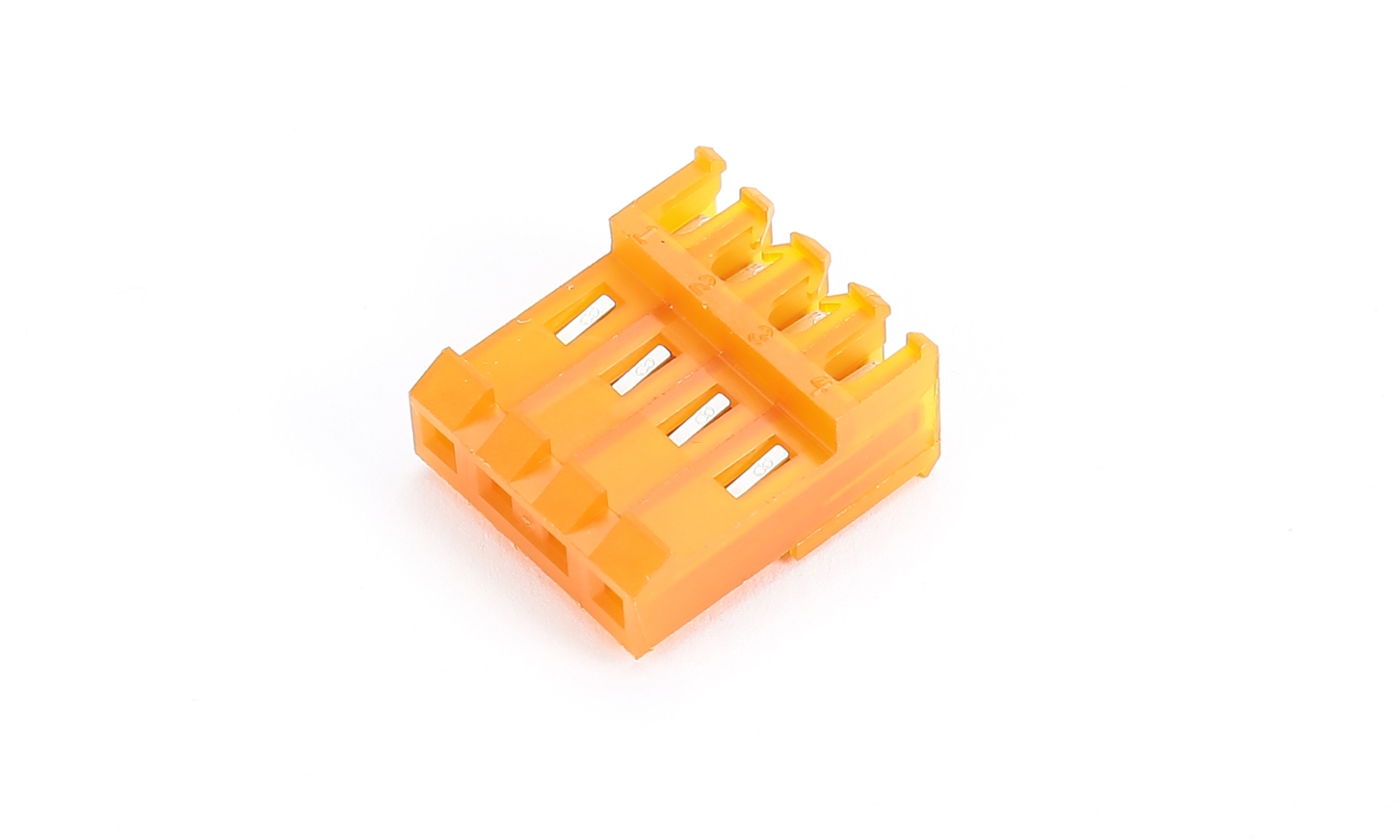

Headers & Wire Housings FEED THRU WO TAB 4P L.R. orange 18 AWG
Headers & Wire Housings FEED THRU WO TAB 4P L.R. orange 18 AWG
Ürün Kodu:
| Brand | TE Connectivity |
| Product | Headers |
| Type | Receptacle Assembly |
| Number of Positions | 4 Position |
| Pitch | 3.96 mm |
| Number of Rows | 1 Row |
| Mounting Style | Wire |
| Termination Style | IDC |
| Contact Gender | Socket (Female) |
| Contact Plating | Tin |
| Contact Material | Copper Alloy |
| Current Rating | 7 A |
| Housing Material | Nylon |
| Latching Type | Locking Ramp |
| Voltage Rating | 600 VAC |
| Wire Gauge | 18 |
