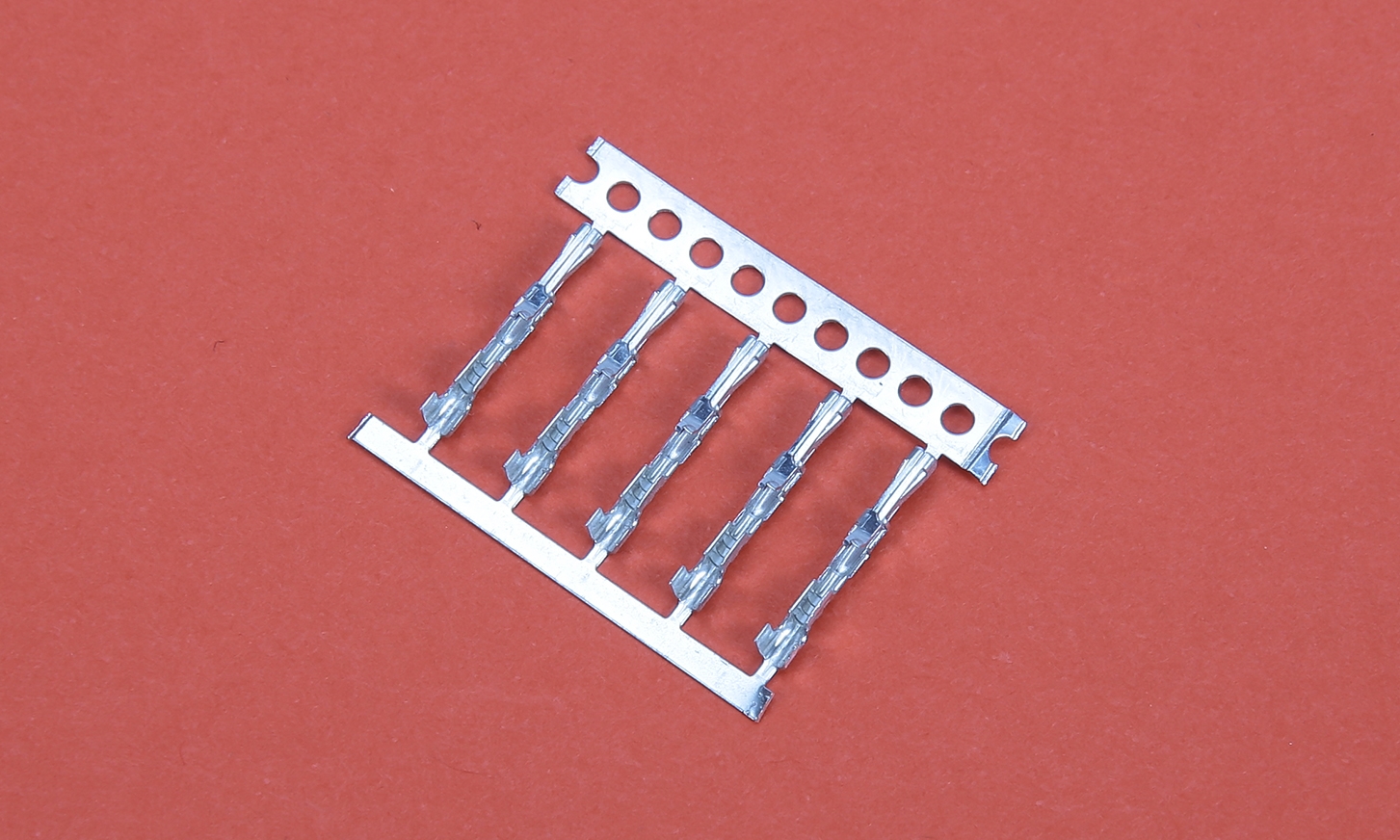

CONN SOCKET 24-30AWG CRIMP TIN
CONN SOCKET 24-30AWG CRIMP TIN
Ürün Kodu:
| Termination Method | Crimp |
| Body Orientation | Straight |
| Mounting | Cable Mount |
| Packaging | Reel |
| Contact Type | Signal |
| Maximum Current Rating (A) | 3 |
| Maximum Contact Resistance (mOhm) | 15 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin Over Nickel |
| Shielded | No |
| Wire Size (AWG) | 24-30 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 105 |
| Product Length (mm) | 12.96 |
| Product Depth (mm) | 1.91 |
