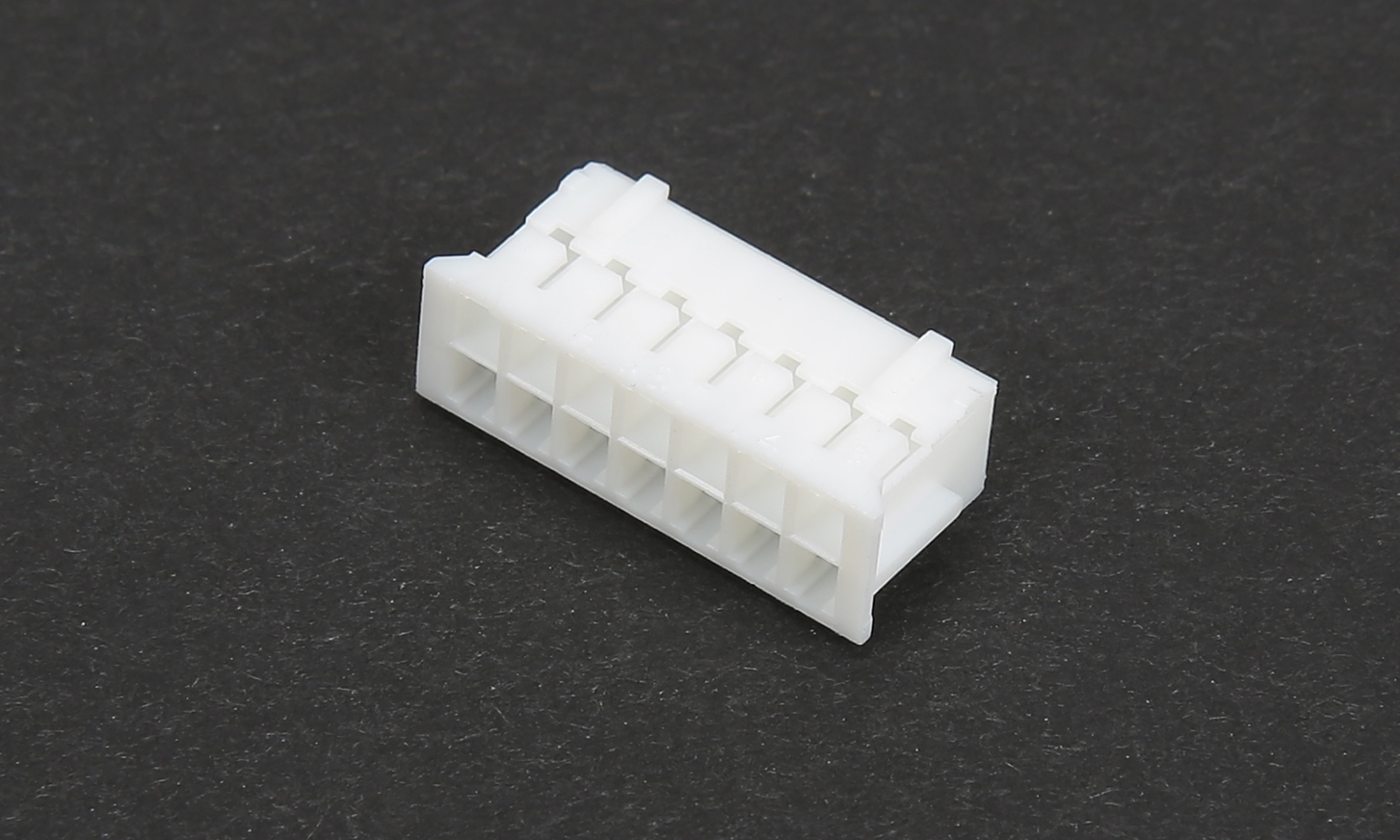

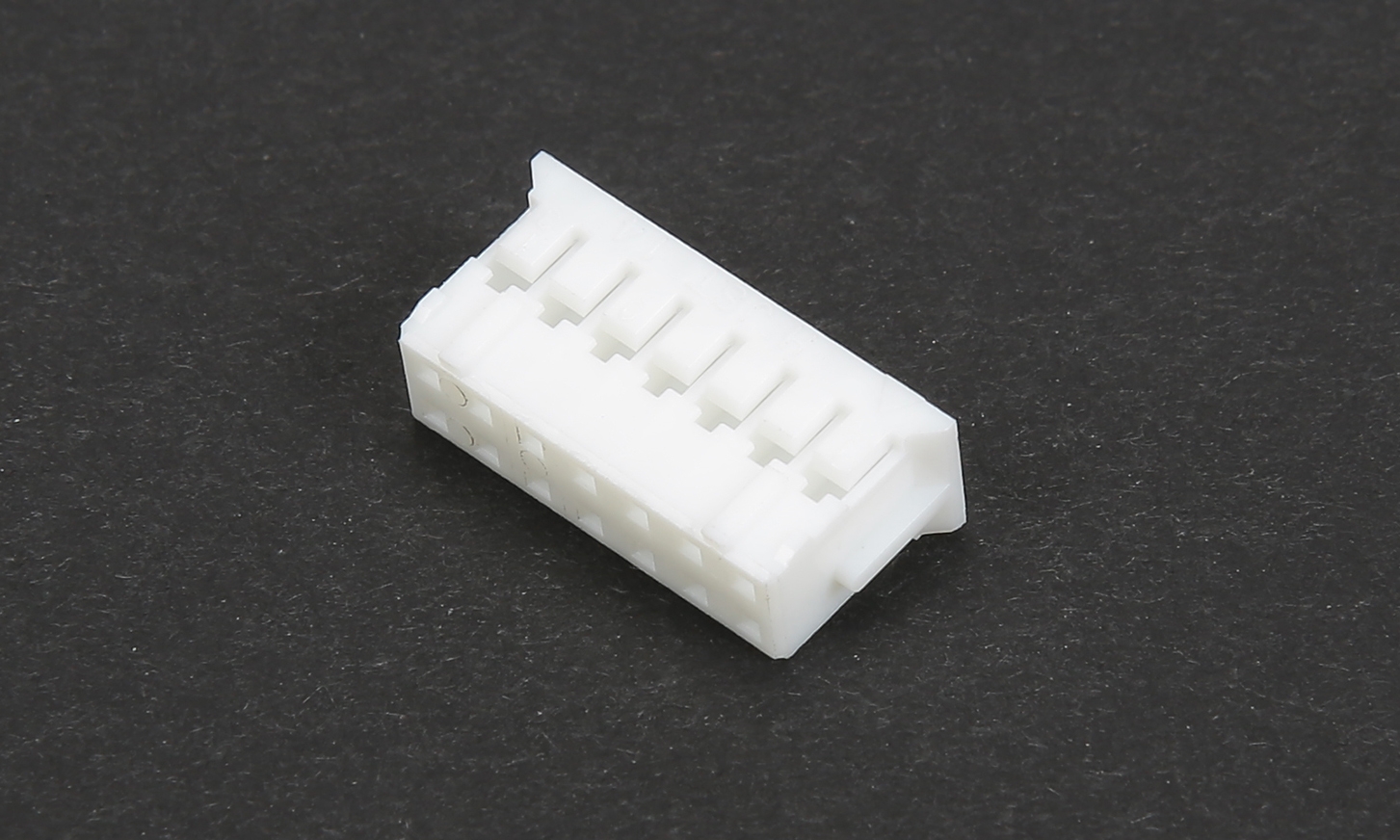

CONN HOUSING PHD 14POS 2MM DUAL
CONN HOUSING PHD 14POS 2MM DUAL
Ürün Kodu:
| Number of Contact Rows | 2 |
| Body Orientation | Straight |
| Number of Contacts | 14(POS) |
| Packaging | Bag |
| Housing Color | White |
| Operating Temp Range | -25C to 85C |
| Gender | RCP |
| Product Height (mm) | 5(mm) |
| Current Rating (Max) | 3(A) |
| Product Length (mm) | 15.9(mm) |
| Product Depth (mm) | 7.3(mm) |
| Voltage Rating Max | 250VDC/250VAC |
| Pitch (mm) | 2(mm) |
| Type | Housing |
| Wire Gauge | 22-28(AWG) |
| Housing Material | Polyamide 6/6 |
