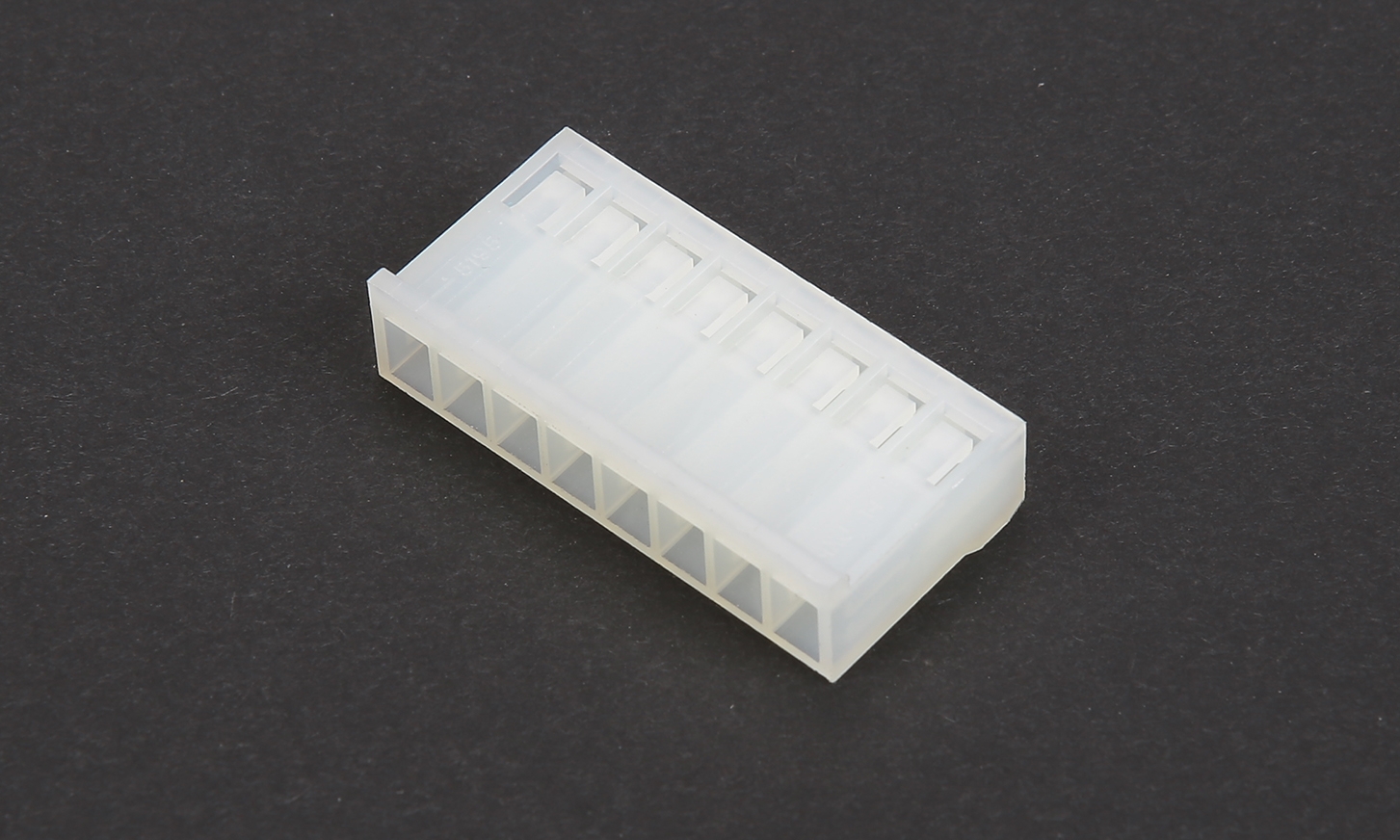

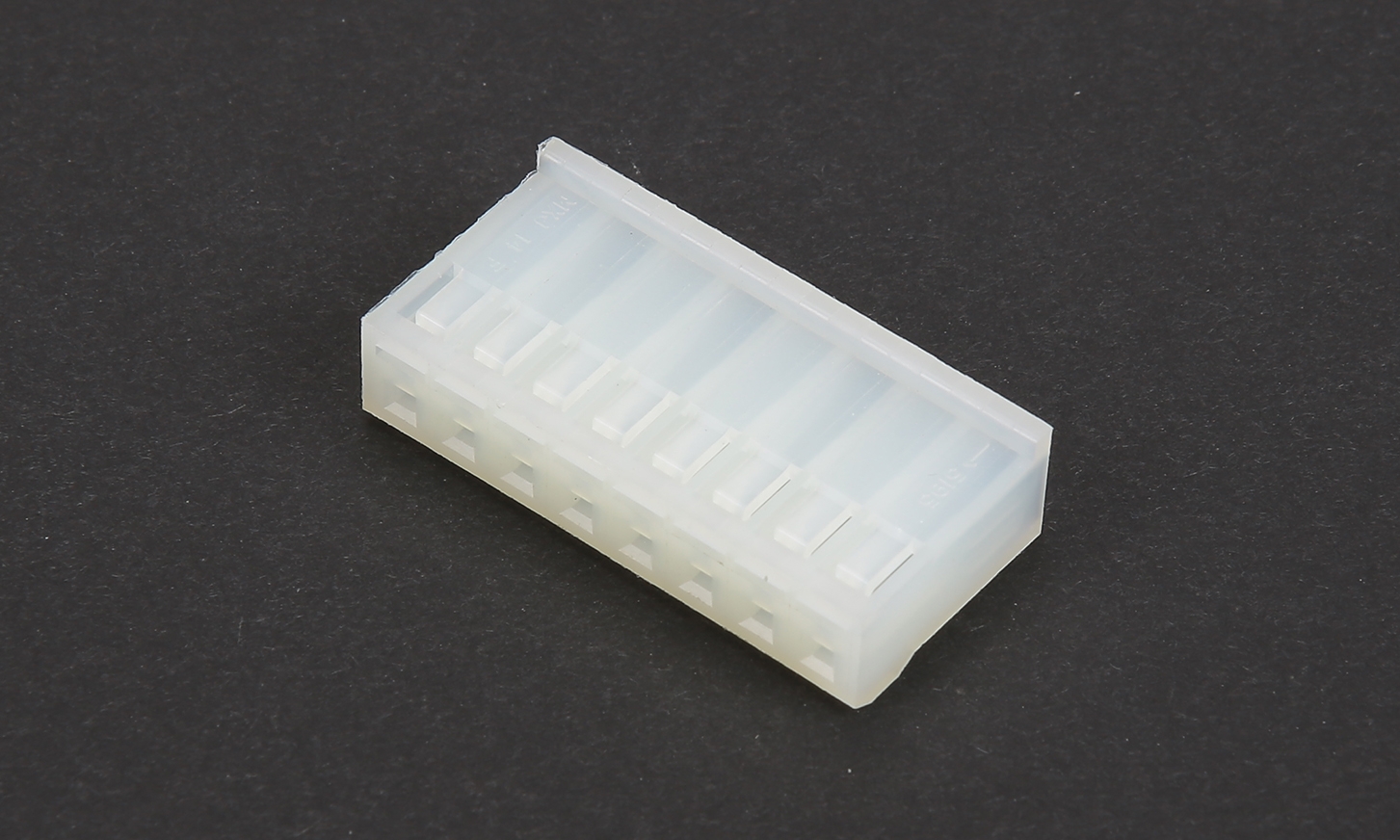

Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount SPOX™ Bag
Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount SPOX™ Bag
Ürün Kodu:
| Operating Temp Range | -40C to 105C |
| Gender | Female |
| Housing Material | Nylon 6/6 |
| Body Orientation | Straight |
| Packaging | Bag |
| Type | Housing |
| Number of Contacts | 8(POS) |
| Housing Color | Off White |
| Product Length (mm) | 32.82(mm) |
| Product Depth (mm) | 16(mm) |
| Product Height (mm) | 8.85(mm) |
| Voltage Rating Max | 250V |
| Pitch (mm) | 3.96(mm) |
| Current Rating (Max) | 7/Contact(A) |
