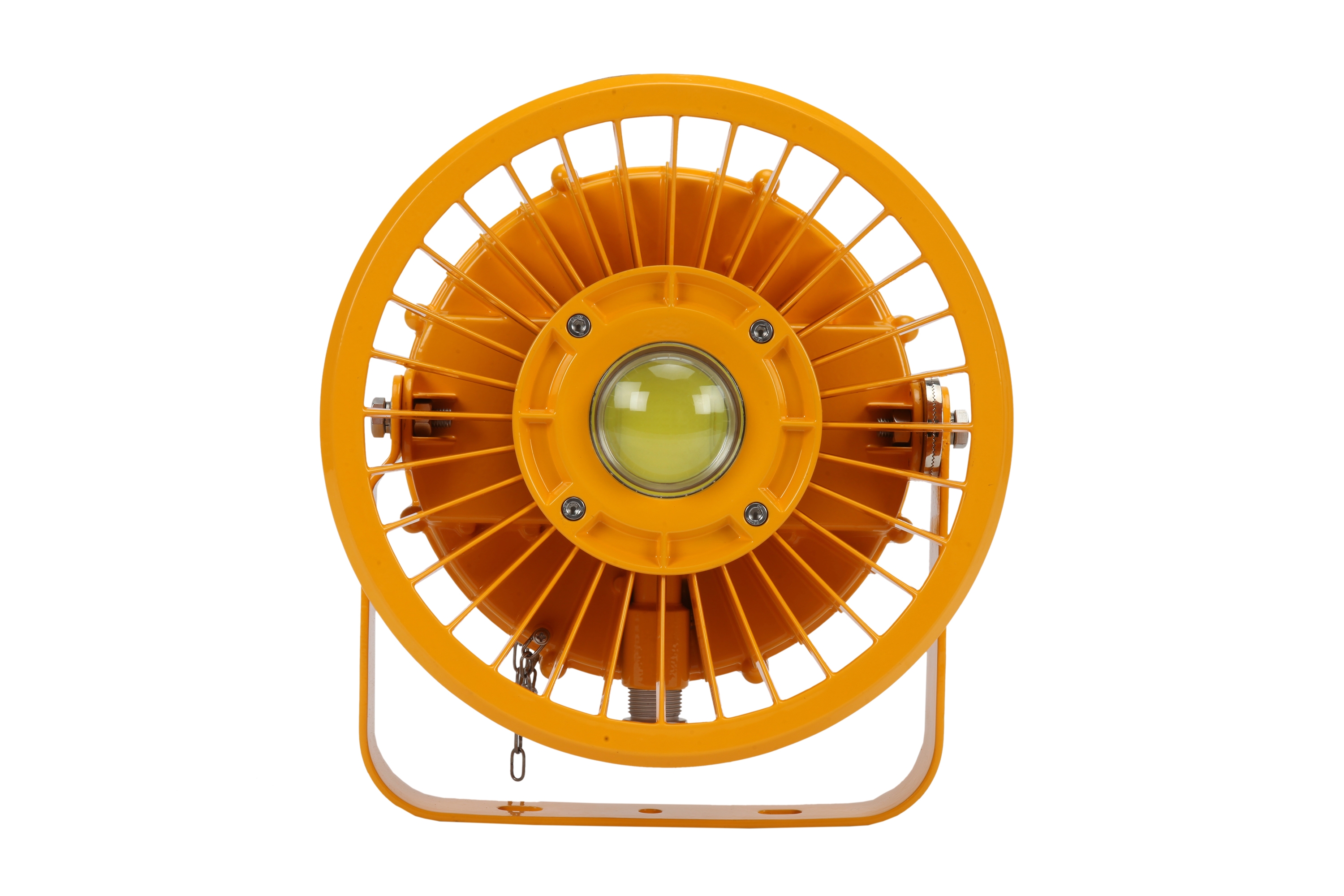

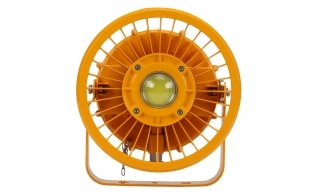

50W High Power Explosion Proof Led Floodlight
Ürün Kodu:
Applications
-
Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.
-
Harsh environment, moist area.
-
Gas explosive environment : Group IIA, IIB, IIC
-
Zone 1, Zone2; Zone 21, Zone 22
-
Temperature class: T1 to T6
Product Features
-
Dual cable inlet system - Units can be mounted in parallel or series config.
-
Industry recognised components - Cree LED light engines combined with a Mean Well power supply unit. (PSU/driver)
-

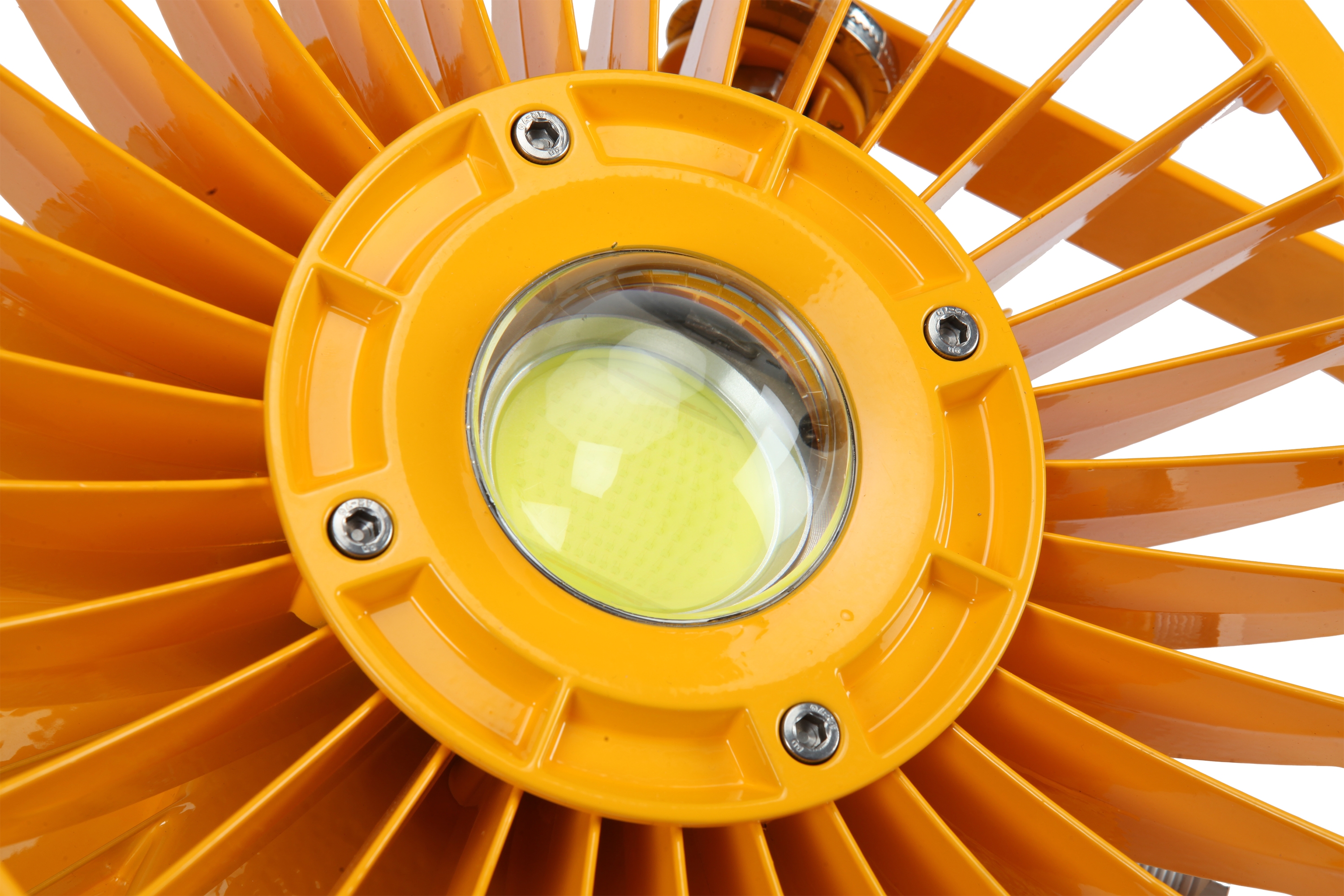

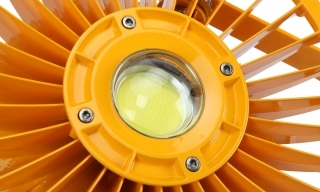

Isolated LED chip-and-lens design improves thermal conductivity and ensures a market-leading product lifspan.
-
Dual purpose. This unit can function as either a high bay or floodlight dependent on installation and lens specification.
-
-

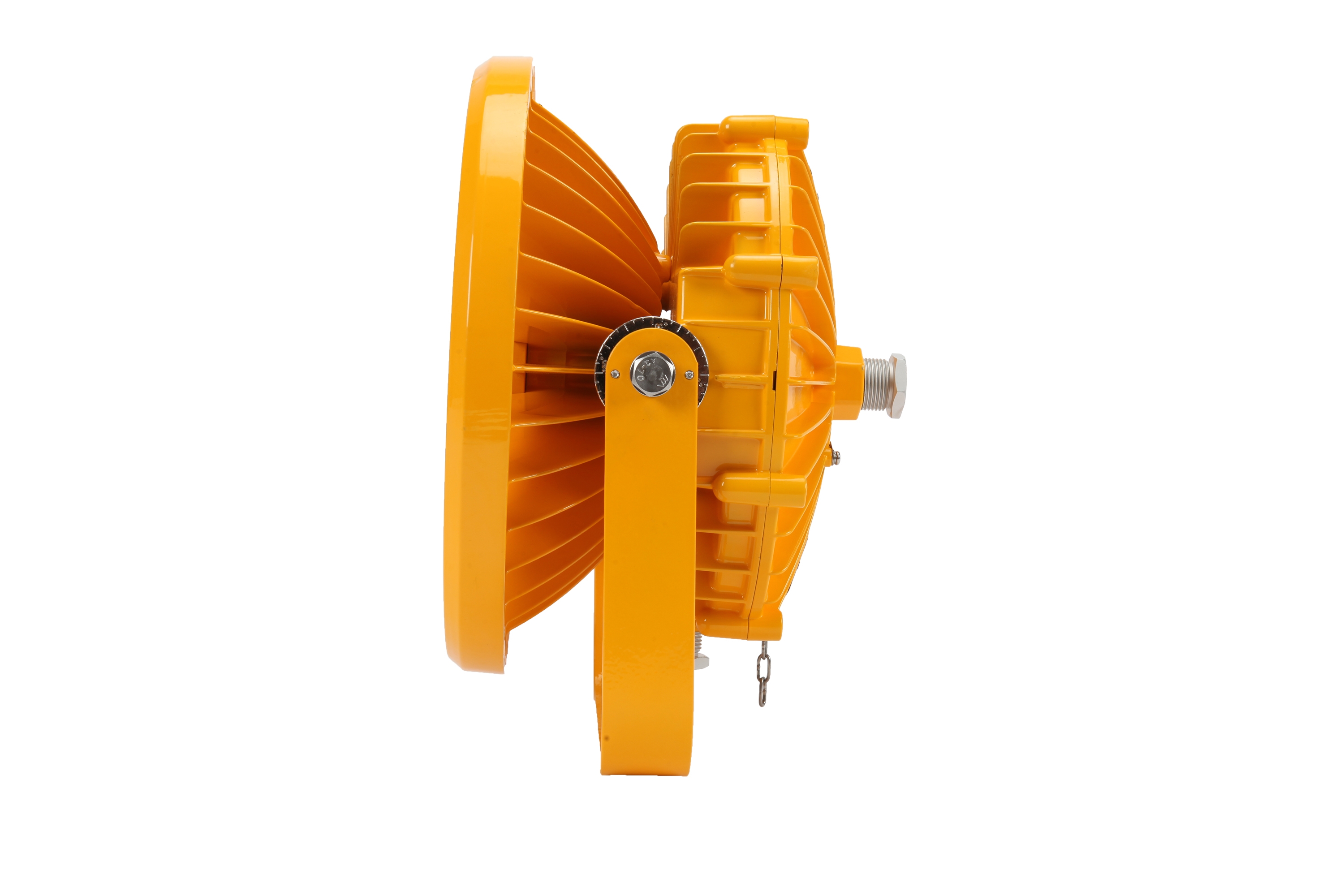

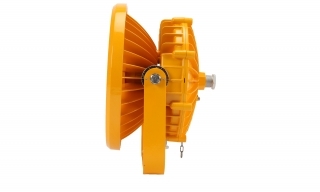

In-built heat sink balances unit efficiency with extreme structural integrity.
Technical Details
Performance
|
Led Chip |
Cree |
|
Lumen Output |
4925 lm (+/-5%) |
|
Norminal Power Rating |
50W |
|
Efficacy |
98,5 lm/W |
|
Beam Angle (W/H) |
90° (Standard),60°,120/140° |
|
Color Temperature |
5000K |
|
Colour Rendering Index |
>80Ra |
|
Lumen Maintenance |
L70.>100,000 Hours |
|
Input Voltage |
90-305VAC Mean Well |
|
Power Factor |
>0.95 |
|
Input Frequency |
50/60Hz |
|
Anti Corrosion Grade |
WF2 |
|
Insulation Grade |
I |
|
Cable Diameter |
8-14mm |
|
Screw Thread |
G3/4'' |
Environmental
|
IP Rating |
IP66 |
|
Operational Temperature |
-40°C ~ +50°C |
|
Operational Humidity |
0% to 90% RH |
Physical
|
Dimensions (φ x H) |
300 x 332 x 202mm |
|
Weight |
6.3kg |
Warranty
|
Details |
5 Years Comprehensive
|
